Model | SQ5K-100 | SQ5K-200 | SC5K-300 | SC5K-400 | |
Battery Type | LiFePO4 | ||||
Nominal Capacity | 100Ah | 200Ah | 300Ah | 400Ah | |
Rated Battery Voltage | 51.2V | ||||
Operating Voltage Range | 40~58.4V | ||||
Max.Charging Current | 100A | ||||
Max.Discharge Current | 100A | ||||
Max.Stack Quantity | 4 | ||||
Operating Temperature Range | Charge:0~66℃ Discharge:-20℃~60℃ | ||||
Operating RH | 0-95% RH | ||||
Working Altitude | <3000m | ||||
| Assembly Method | Stack | ||||
Net Weight | 79.4Kg | 138.9Kg | 198.4Kg | 257.9Kg | |
| Size(L*W*H) | 580*400*452mm | 580*400*719mm | 580*400*986mm | 580*400*1253mm | |
| Cycle Life | <3000+ cycles life | ||||
| PV Input | |||||
Num. Of MPPT Trackers | 1 | ||||
| Max.PV Array Power | 5200W | ||||
Max.Input Current | 18A | ||||
| Max.Voltage of Open Circuit | 500VDC | ||||
MPPT Voltage Range | 120~450VDC | ||||
| MPPT Tracking Effciency | 99.9% | ||||
| Inverter Output | |||||
Rated Output Power | 5,000W | ||||
| Max.Peak Power | 10,000W | ||||
Rated Output Voltage | 120VAC(Single-Phase L+N+PE) | ||||
| Max.Battery Inverter Effciency | >90% | ||||
Load Capacity of Motors | 4HP | ||||
| Rated AC Frequency | 50/60HZ | ||||
Waveform | Pure sine wave | ||||

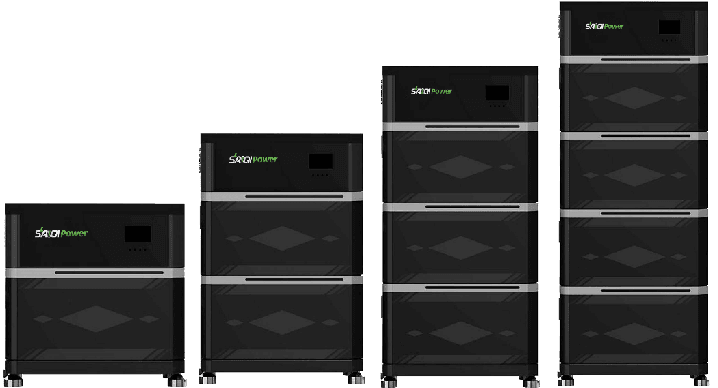

Home Energy Storage
Home Energy Storage 5000W
Revolutionize your home energy with our high-performance Home Energy Storage. Delivering a robust 5000W output and a flexible capacity ranging from 5000Wh to 20KWh, it’s the ultimate solution for uninterrupted power supply, energy independence, and efficient energy management. Perfect for homeowners looking to safeguard against outages, reduce electricity bills, and embrace sustainable living. Explore the power of reliable home energy storage today.
- Directly Operated By The Original Factory
- Stable And Safe Quality
- Support OEM/ODM
